Rheem
MODEL NO: 952015

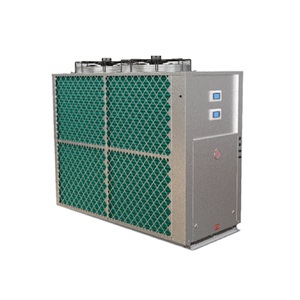

YF Series Air to Water (A2W) 15kW Commercial Heat Pump – Ducted

Rheem’s YF™ Series Commercial heat pump uses R1234yf refrigerant, which has an ultra-low Global Warming Potential (GWP) of <1. Delivering hot water up to 65°C and operating in ambient temperatures down to 0°C, the 15 kW ducted model achieves a Coefficient of Performance (COP) of up to 3.92 at 20°C ambient. Ducted models are designed with high-static fans to enable reject air to be conveyed from the room. Models are available in vertical and stackable horizontal discharge configurations.

REQUEST A QUOTE
Product Details

Features at a Glance

Capacity
15kW
Warranty*
2 Years

Features

•Ultra-low <1 GWP refrigerant 1234yf.
•Operates in ambient conditions to a low of 0°C.
•Space saving with horizontal models suitable for stacking.
•Optional brazed plate stainless steel  or tube in tube copper heat exchanger for harsh water conditions.
•Fully certified for Electrical Safety, EMC and Water Mark.
•Dipped evaporator coils as standard to provide superior protection in corrosive environments.
•Upgraded Rheem iQ controller for improved performance and superior monitoring.



Warranty

•2-year warranty on parts and labour on sealed system*
•1-year warranty on parts and labour on remainder*



*Warranty conditions apply

Brochures, Guides & Drawings

Brochures

YF Series - RHE640 C&I Brochure Edition 8 2026_DIGITAL_HR

Owners and Installation Guides

Installation Instructions - Rheem Commercial Heat Pump YF Series Air to Water 122684 Rev-02 Oct 2025

Drawings

HeatPump_AirToWater_Rheem_15kW_Vertical_LowGWP.rfa
HeatPump_AirToWater_Rheem_15kW_Horizontal_LowGWP.rfa
Specification

The water heater(s) shall be Rheem YF™ Series Commercial Air to Water Heat Pump model 952015__, ducted configuration, with a nominal heating output of 15 kW and a COP of 3.92 at 20°C ambient / 60% RH. The heat pump shall use R1234yf refrigerant with a Global Warming Potential (GWP) of <1 and shall be capable of delivering hot water up to 65°C. The unit shall incorporate high-static fans suitable for ducted installation, a marine-grade aluminium cabinet and corrosion-protected evaporator coils. The water heater shall conform to AS 3498, be WaterMark certified and comply with AS/NZS 60335.1 and AS/NZS 60335.2.40. The heat pump shall incorporate Rheem iQ® controls and provide connectivity for Building Management System (BMS) integration.
Performance Calculator
